DW – YL 270

DW – YL 270

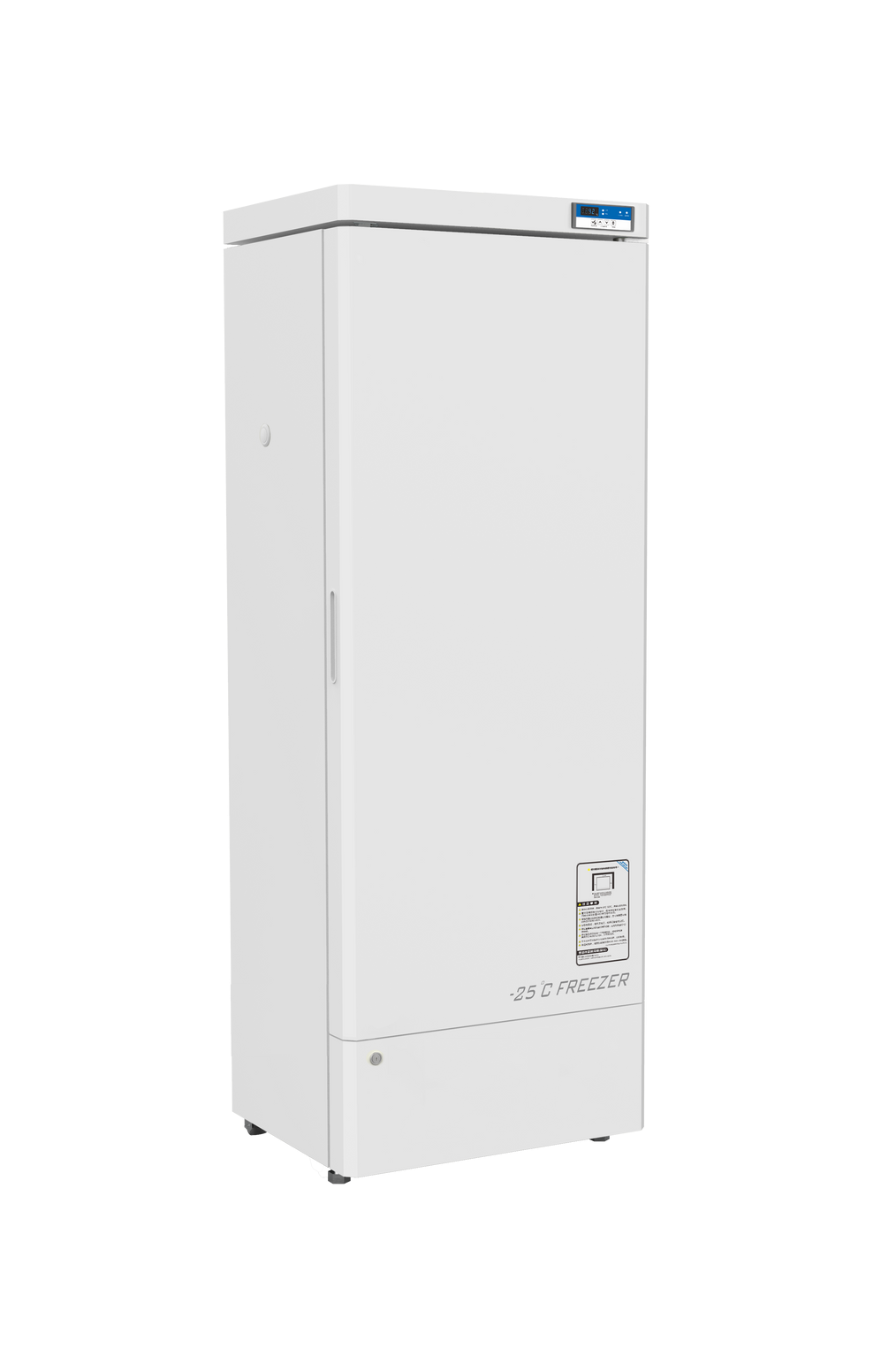

-25°C Biomedical Freezer


Characteristics:


Refrigeration System:

- The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy saving and low noise

- The condenser installed on the bottom ensures temperature stability and system reliability.


Temperature Control:
The high-precision computerized temperature control system ensures an adjustable temperature within a range from -10 to -25°C inside the cabinet.



Security System:
The well-developed audible & visual alarm system (sensor failure alarm, high temperature/ low temperature alarm, etc.) makes it safer for storage. The turn-on delay and stopping interval protection function can ensure reliability in running.



Human Oriented:
The built-in door seal is dust proof and easy to clean.



High-precision Temperature Control System
- The system has the function of digital temperature display and temperature inside the cabinet can be set within a range from -10°C to -25°C
- High-precision microcomputer temperature control system; The platinum resistor temperature sensors ensure more precise temperature control.


Refrigeration System
- The compressor supplied by an international famous brand compressor is energy saving and environmentally friendly
- The refrigerating circuit with proprietary intellectual property rights ensures high efficiency and stability


Thermal Insulation System
- The two-layer thermal insulating foamed door can prevent loss of refrigerating capacity in an effective way
- The cabinet is made from CFC-free polyurethane material, which can improve its heat insulating performance to a large extent.


Security System
- The well-developed audible & visual alarm system makes it safer for storage
- Equipped with alarm functions including high / low temperature alarm, sensor failure
- Specially equipped with external door handle and padlock to prevent unauthorized opening.


Scope of Application:
Suitable for use in scientific research, cryogenic test on special materials, blood plasma cryopreservation, low temperature resistance test on biological materials, vaccines, biological products and military products, etc. Suitable for use in research institutions, the electronic industry, the chemical industry, hospitals, the health & disease prevention system, laboratories in colleges & universities, military enterprises, etc.





  • Cabinet Type: Upright
  • Capacity (L): 270
  • Internal Size (W x D x H): 500 x 460 x 1235 mm
  • External Size (W x D x H): 700 x 640 x 1792 mm
  • Package Size (W x D x H): 757 x 717 x 1865 mm
  • Weight (N): 90 kg
  • Weight (G): 98 kg



Performance:

  • Temperature Range: -10 ~ -25ºC
  • Ambient Temperature: 16 ~ 32ºC
  • Cooling Performance: -25ºC
  • Climate Class: N
  • Controller: Microprocessor
  • Display: Digital Display



Refrigeration:

  • Compressor: 1 pc
    Cooling Method: Direct cooling
  • Defrost Mode: Manual
  • Refrigerant: R 600 a
  • Insulation Thickness (mm): 100



Construction:

  • External Material: PCM
  • Inner Material: Sprayed aluminum plate

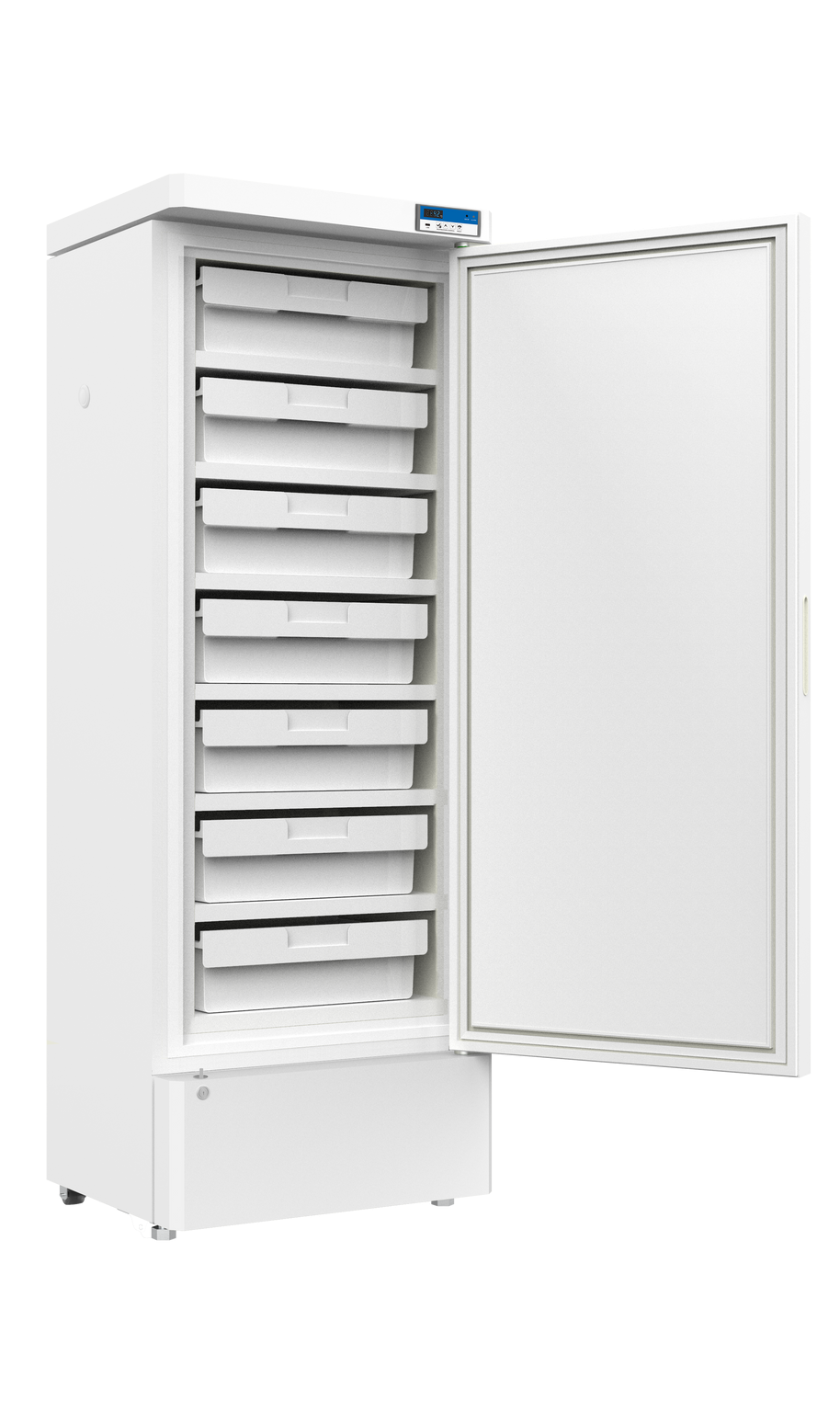

  • Drawers: 7 (ABS)
  • Door Lock with key: Yes
  • Access Port: 1 pc. Ø 25 mm
  • Casters: 2 + (2 leveling feet)



Alarm:

  • Temperature: High / Low temperature
  • System: Sensor failure
  • Construction: Door ajar



Electrical:

  • Power Supply: 220 – 240 V, 50 Hz
  • Power: 135 W
  • Power Consumption: 1,21 kWh / 24 h
  • Rated Current: 1,53 A
