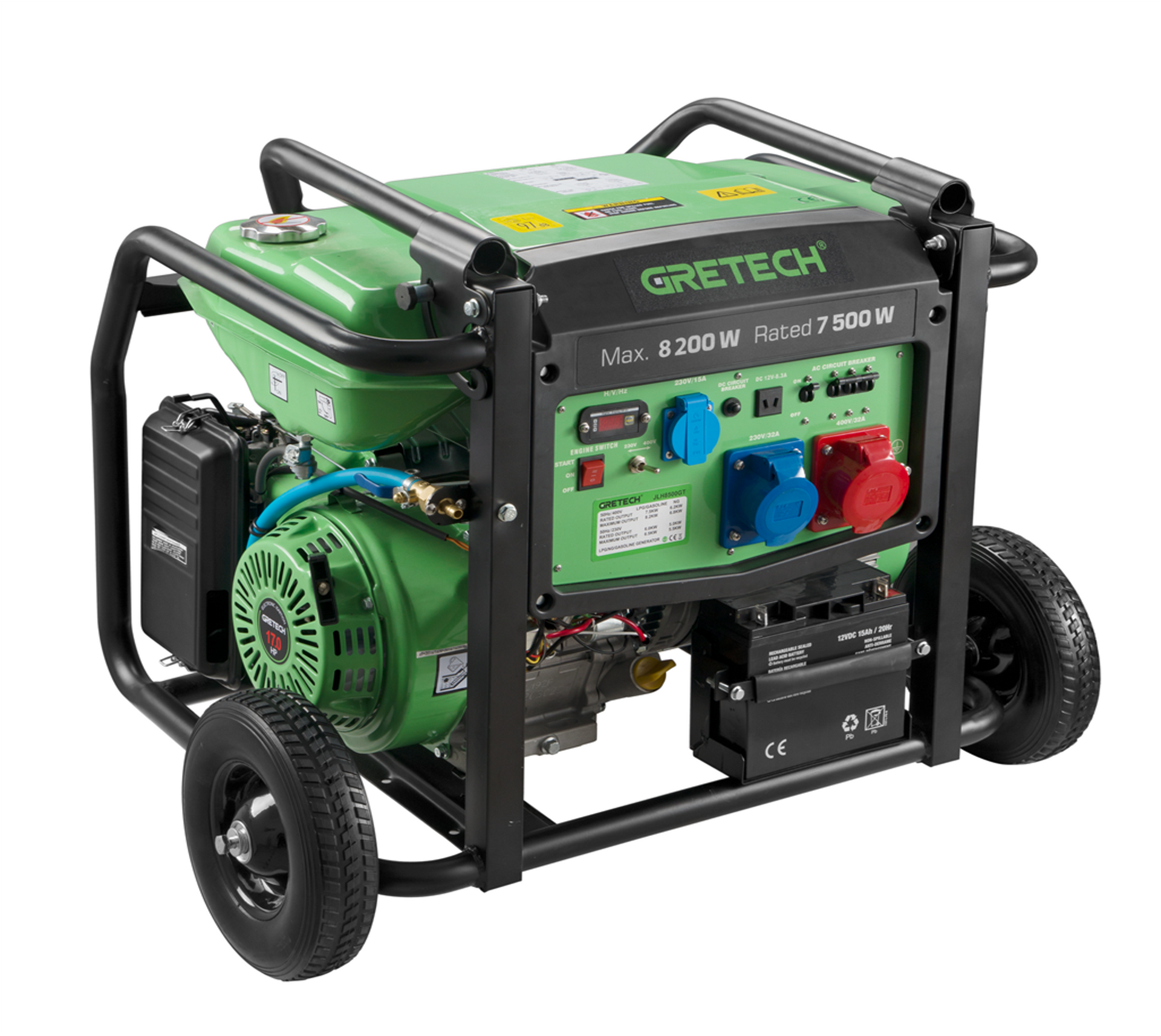

JLY 8000

7.5kw LPG/NG/Gasolne Generator

Frequency: 50 Hz

Rated Power(LPG/Petrol): 7500 W

Max.Power(LPG/Petrol): 8200 W

Rated Power(Natural gas): 6750 W

Max. Power(Natural gas): 7380 W

Rated Voltage(AC): 230 V

DC Output: 12 V / 8.3 A

Phase: Single-phase

Starting system: Recoil

Fuel Tank Capacity: 28 l

Alternator: 100 % Copper enameled wire

AVR: In-Built AVR

Protection: Low oil alert system, Circuit break

Oil capacity: 1.3 l

Certificate: CE, ISO

Engine

Model No. JL 460 G / 459 cc / 17 HP / 4-Stroke / OHV

RPM: 3000 rpm

Noise Level dB(7m): 70 dB(A)

Fuel Consumption:

• LPG: 0.36 kg / kw.
• NG: 0.35 m3 / kw.h
• Gasoline: 0.9 l / kw.h

Recommended input pressure of LPG / Natural gas: 2.0 – 6.0 kPa (0.29 – 0.87 PSI)

Weight (dry): 102 kg

Size: 700 × 830 / 865 × 620 mm

Option

• with round cover
• with 3 in 1 meter
• with push handle + Wheels
• with Electric start + 15AH Battery
• with 3 phases
• with 3phase & equal output
• with ATS Preset
• with ATS BOX
